Mini Control 2

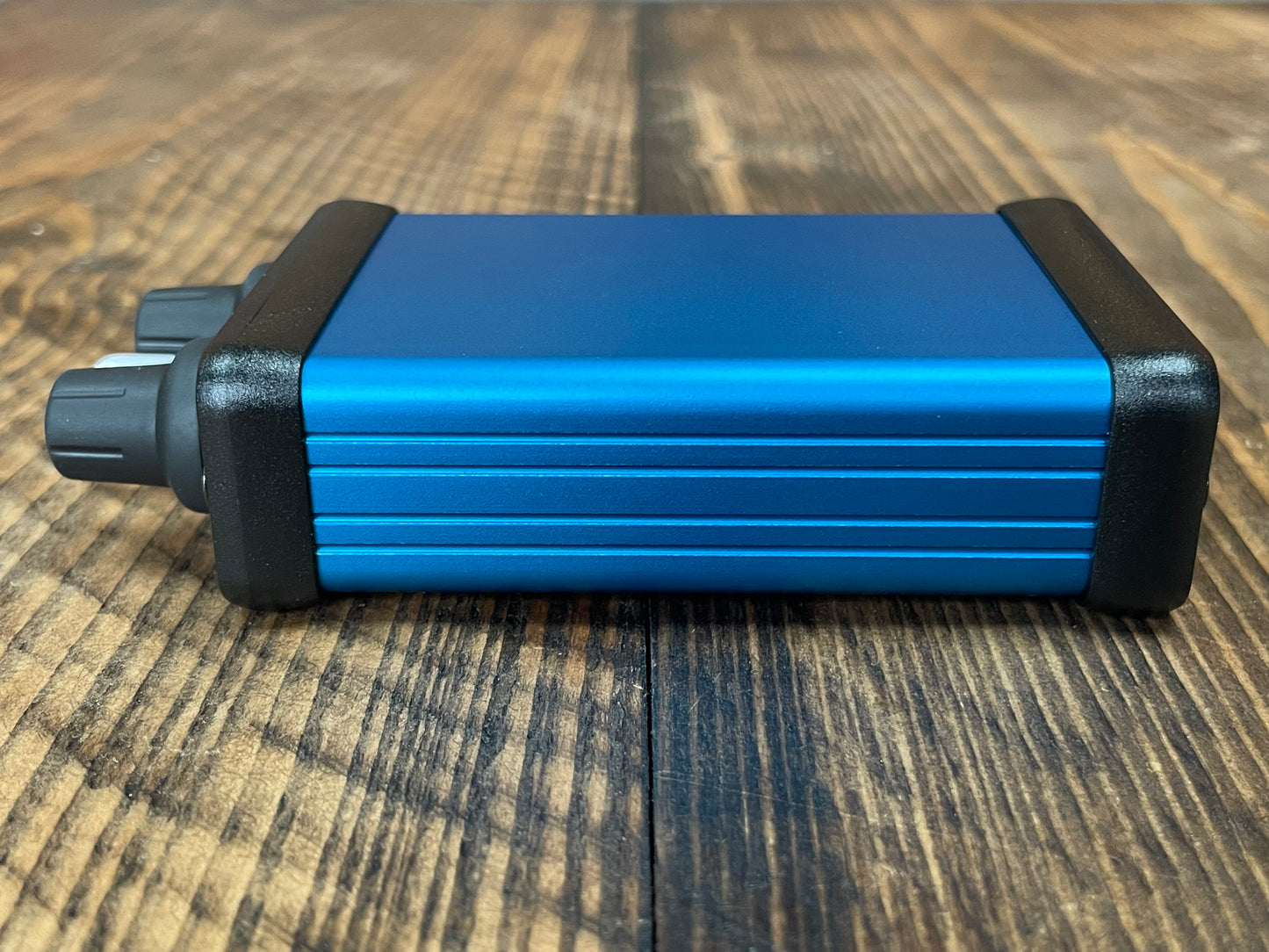

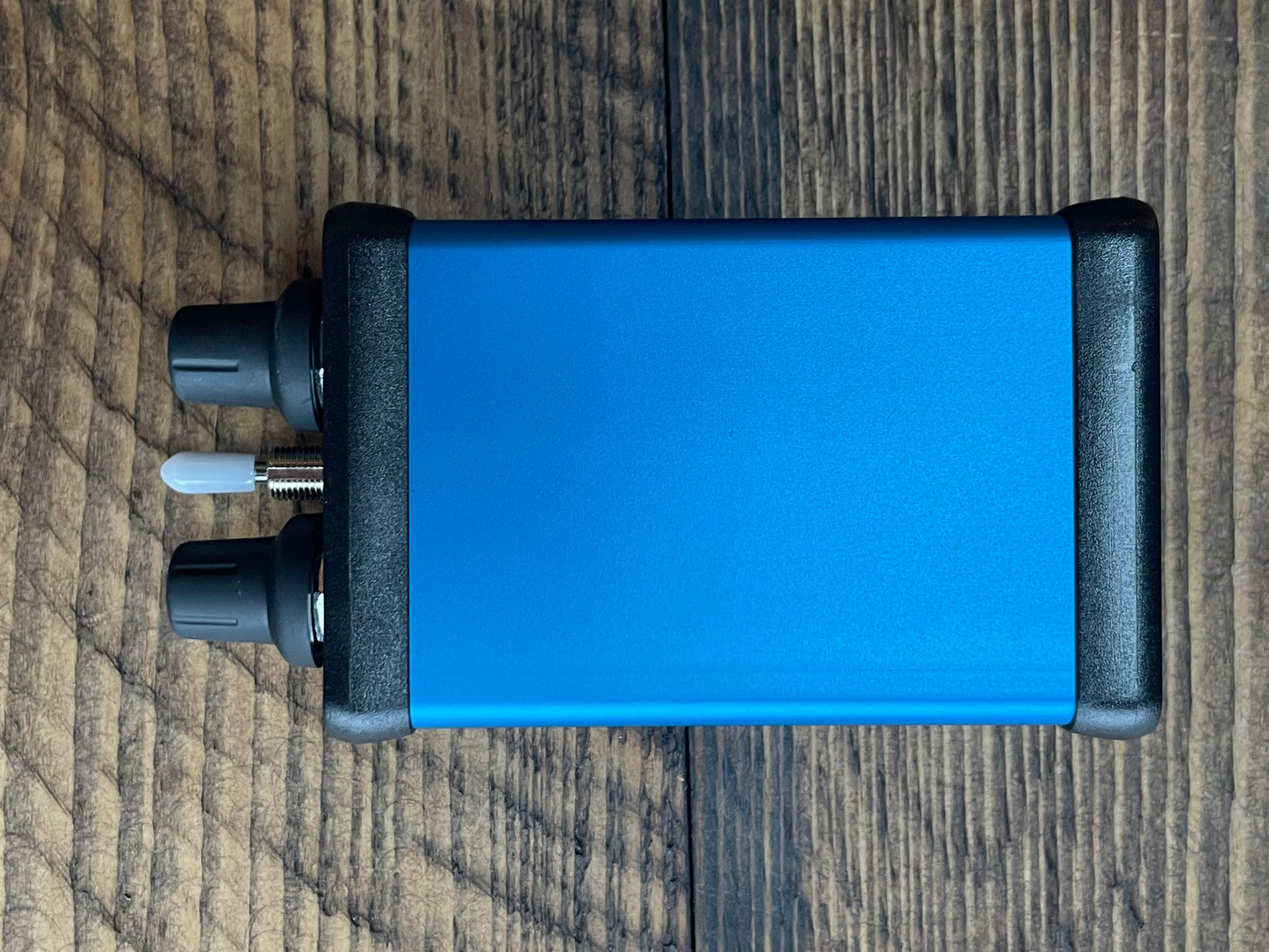

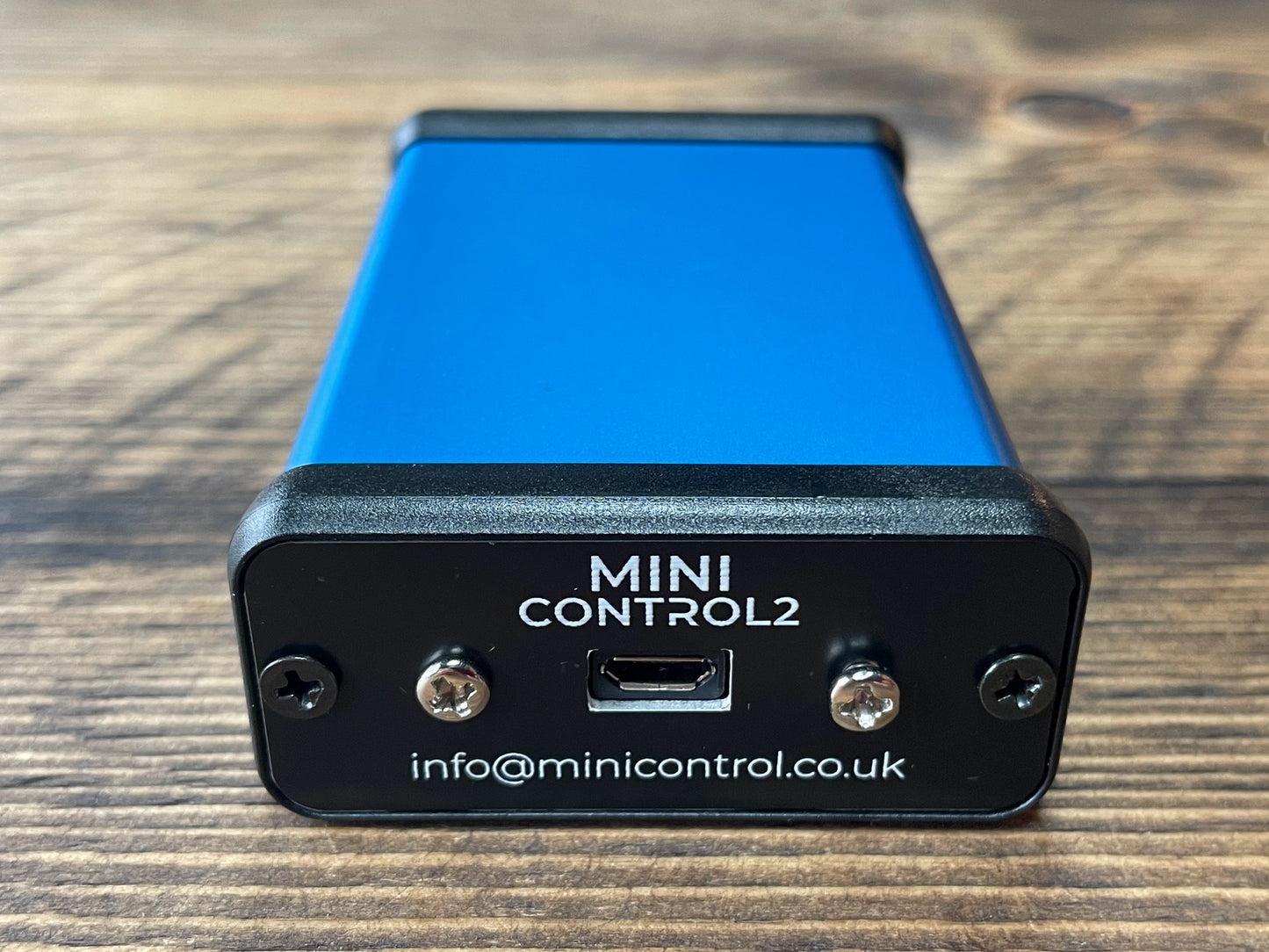

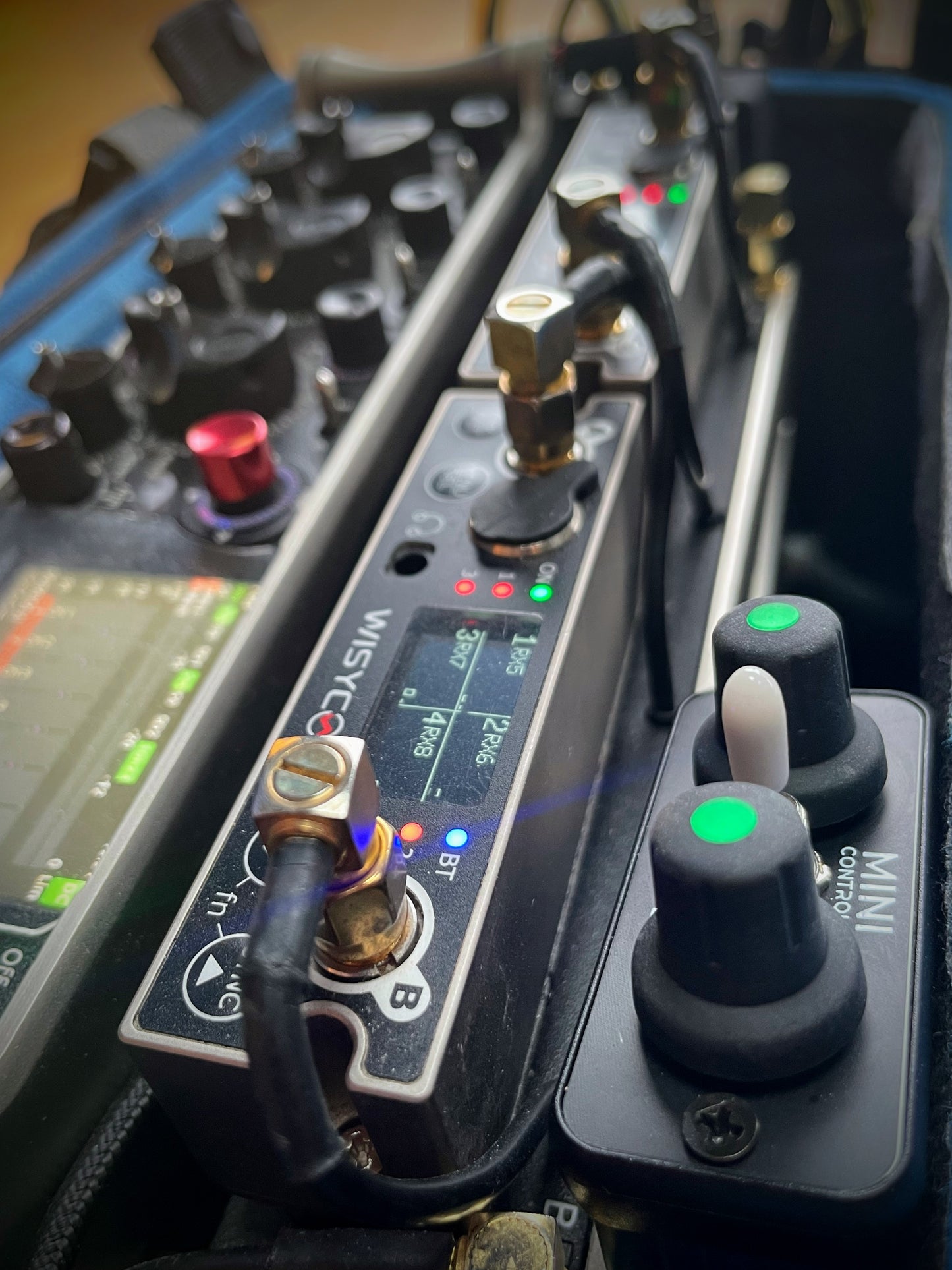

The Mini Control 2 (“MC2”) is a versatile compact MIDI controller designed to work with Sound Devices 8-Series mixer/recorders. It provides convenient control of channels not easily accessible on the host device’s front panel.

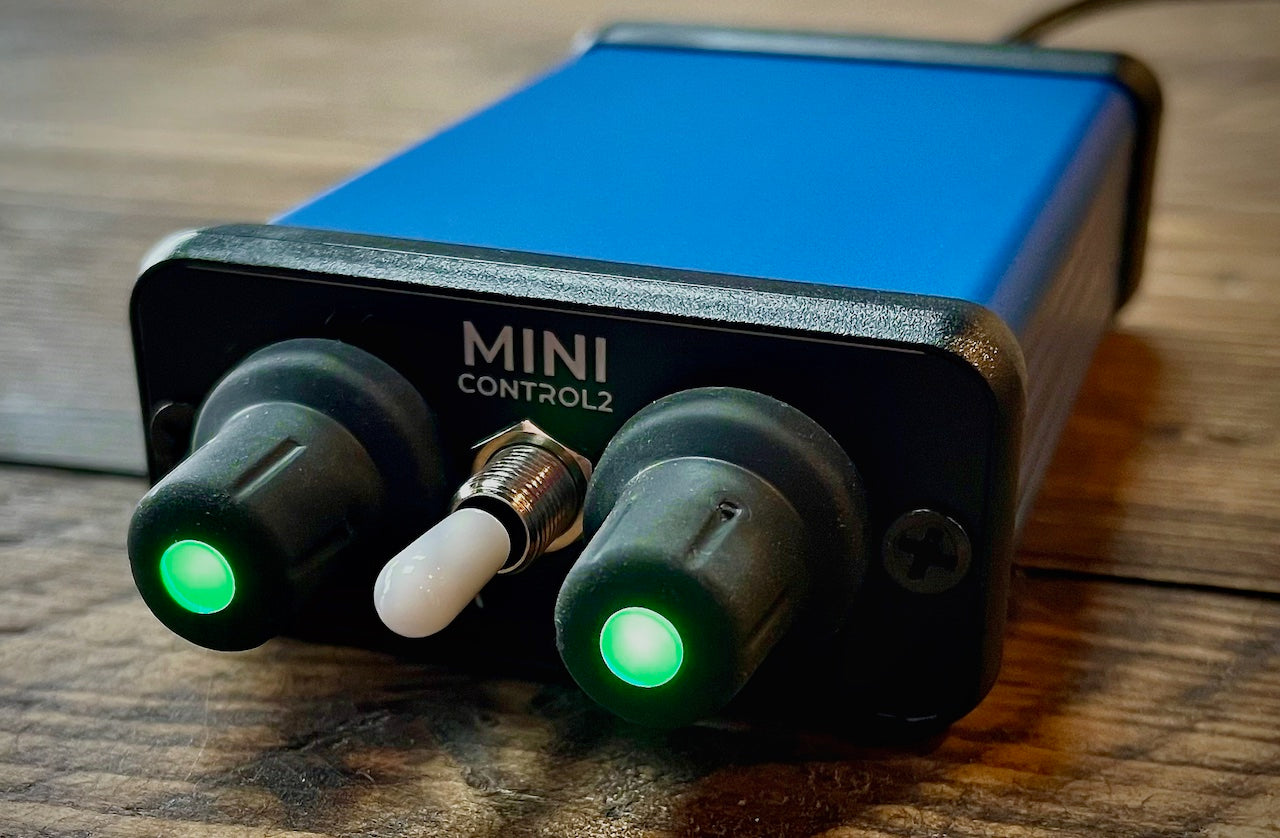

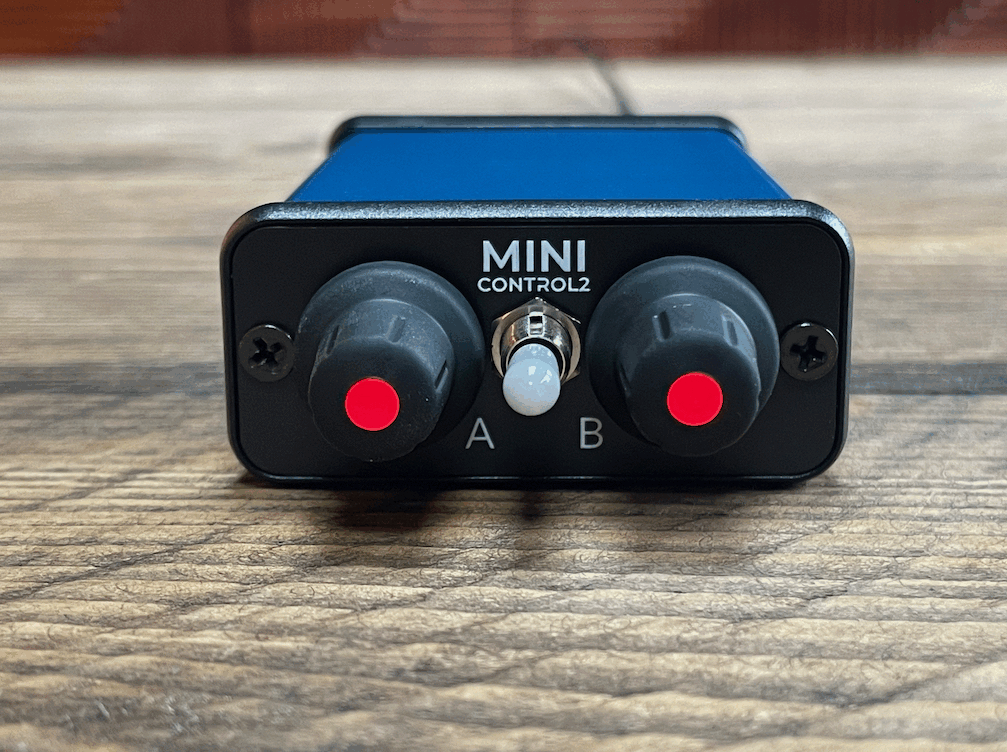

The MC2 operates through a three-way toggle switch and rotary encoder selections, which provide real-time visual feedback through LED colour changes, flashes and pulses in five main colours: red, green, blue, white and yellow.

Features

The MC2 allows the user to control gain and fader level of a Sound Devices 8-Series mixer/recorder. Its functionality is organised over a number of Modes and Configurations.

• Channels 7-8 can be controlled in 833 Configuration.
• Channels 7-12 can be controlled in 833+4 Configuration.
• Channels 9-16 can be controlled in 888 Configuration.
• Channels 13-20 can be controlled in Scorpio Configuration.

In addition to the above, MC2 also offers a number of additional controls and optional Configurations:

• Channel “select”.
• Channel PFL.
• Mappable MIDI control-change messages.
• Rolling channels on/off.
• Additional channels on/off.
• Strict Controller Configuration on/off.
• Free Configuration on/off.
• Level metering on/off.

Additional controller compatibility

 MC2 works without issue alongside MCU controllers, the Sound Devices CL-12 and additional MC2 units, provided the 8-Series is always set to “Individual" under Main Menu > Controllers > Third Party Controllers > Multiple Controllers.

Multiple MC2 units can be connected to an 8-series mixer/recorder through a USB hub and set to control different channels / parameters simultaneously.

Specifications

• Power consumption: 32-117mA @ 5v (dependent on LED brightness).
• Dimensions: 23mm x 54mm x 80mm.
• Weight: 115g

UK:

• £7 - Royal Mail Special delivery (next business day).

Europe:

• £12 - DPD Classic (2-8 business days).
• £20 - DHL Express Worldwide (1-2 business days).
• £35 - DHL Express Worldwide, duty paid (1-2 business days).

Rest of World

• £15 - Royal Mail International Tracked & Signed (9-11 business days).
• £20 - DHL Express Worldwide (2-3 business days).
• £35 - DHL Express Worldwide, duty paid (2-3 business days).

Please note - Unless a "duty paid" shipping option is selected on checkout, non-UK customers may be liable for import duty and local VAT on delivery.

Firmware 2.4 - what's new?

Specification sheet (Firmware 2.4 - September 2024)

User Guide (Firmware 2.4 - September 2024)

Video tutorial (Firmware 2.4)

Legacy Firmware support files (pre September 2024)
